Semiconductor test system

Discrete test system

SETS-200 DC test system (1.2kV/20A)

SETS-200 is DC test system designed for high speed DC testing for small signal to high current of diode, transistor, MOSFET.

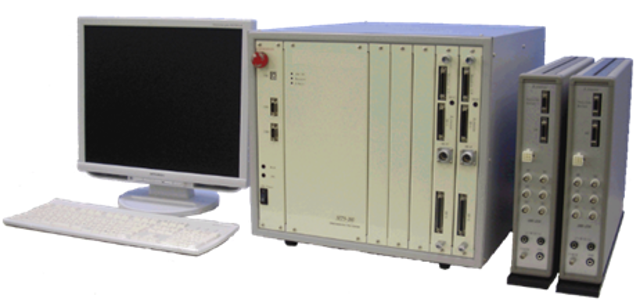

【SETS-200】



Features
  • Reduce test time by 1mS high speed relay operation
  • Controllable Max.4 sets multi-test per PC
  • Backup function of production history
  • Easy test program editing by Excel like
  • Arbitrary waveform function
  • Built-in 1mV small voltage detection circuit (option)

Specifications highlight
  Detection  Applied voltage
High voltage0.0000V~1.2000kV 0.000uA~50.00mA
Small electric current  000.00pA~999.99uA 0.000V~1.200kV
Constant voltage 00.000mV~40.000V 0.000uA~20.00A
Electric current 0.0000uA~20.000A 000.0mV~40.00V


SETS-400 DC test system (2kV/100A)

SETS-400 is DC test system designed for high speed DC testing for high current of diode, transistor, MOSFET.

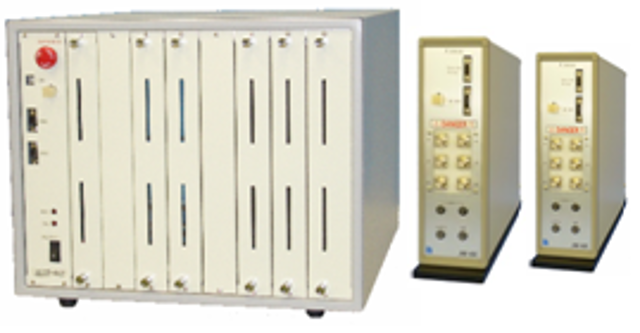

【SETS-400】


Features
  • Reduce test time by 1mS high speed relay operation
  • Controllable Max.4 sets multi-test per PC
  • Backup function of production history
  • Easy test program editing by Excel like
  • Thermal resistance test is available (option)
  • Built-in 1mV small voltage detection circuit (option)

Specifications highlight
  Detection  Applied voltage
High voltage 00.000V~2.0000kV 0.000uA~50.00mA
Small electric current  000.00pA~999.99uA 0.000V~2.000kV
Constant voltage 00.000mV~80.000V 0.000uA~99.99A
Electric current 0.0000uA~99.999A 000.0mV~80.00V


ILT-1000 L-load test system(2000V/100A/200V)

ILT-1000 is GO/NG judgment tester of setting Vsus:- VGATE,IH,IL by observed waveform of turn off caused L-load on MOSFET.

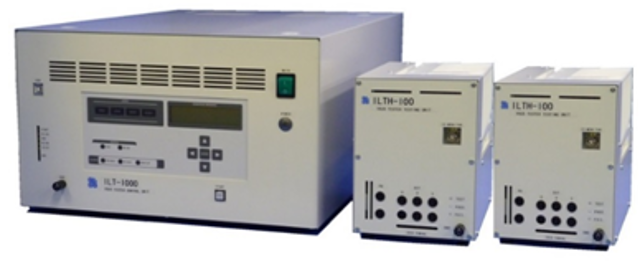

【ILT-1000】


Features
  • Capable of judgment and showing Vsus,IDP,TG
  • Slight ms Measurement (depend on the test conditions)
  • 2 stations ping-pong measurement
  • Compact and fitting with main unit by exclusive coils.
  • Capable of detection the coils which are not specified in the test program by TG watching

Specifications highlight
Item Setup range  Resolution power
drain electric current(ID) 0.5A~100.0A 0.1A
drain voltage(VD)  10.0V~200.0V 0.1V
gate forward voltage(VGS) 0.0V~30.0V 0.1V
gate reverse voltage(VGR) -0.0V~-30.0V 0.1V
area designated electric current (IH/IL) 0.2A~100.0A 0.1A
Vsus limit(V-GATE) 10V~2000V 1V


TRT-1000 Thermal resistance test system(200V/50A)

TRT-1000 measuresΔVF using feature, which thermal resistance (θjc) of MOS-FET, transistor etc and forward voltage of PN junction are proportionate to temperature change, determines with comparing specified value and sorts.

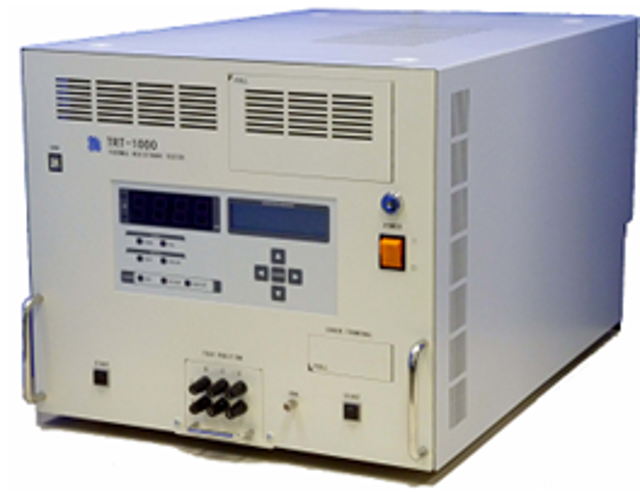

【TRT-1000】


Features
  • Circuit composition time is short due not to used mechanical relay on measurement circuit
  • Realized optimum circuit conditions by unique architecture, exchange front measurement UNIT to head box and connected.
  • Measured current is settable at contact optionally. measured value display of contact resistance is available.
  • Easy waveform observation by PC display of its waveform at each terminal points.
  • Easy finding of faulty in each Bias circuit through self-diagnosis.

Specifications highlight
Item Measurement range  Resolution power
VBE1/VSD1/VGE1/VCE1/VF1 0000mV~9999mV 1mV
drain voltage(VD)  10.0V~200.0V 0.1V
ΔVBE/ΔVSD/ΔVGE/ΔVCE/ΔVF 000.0mV~999.9mV 0.1mV
ΔVBE/ΔVSD/ΔVGE/ΔVCE/ΔVF 0000mV~9999mV 1mV
Item Measurement range  Resolution power
VCB/VDS 000.1V~200.0V 0.1V
IE/ID/IF 00.001A~50.000A 0.001A
IM 001mA~400mA 1mA
Power Time (PT) 100us~9.99s 3 digits least Bit
Delay Time (DT) 010us~999us 1us
Gate Limit (G-Limit) 1.0V~20.0V 0.1V
Lower Gate (LOW) 000.0mV~999.9mV 0.1mV
/Upper Gate (UP) 0000mV~9999mV 1mV
